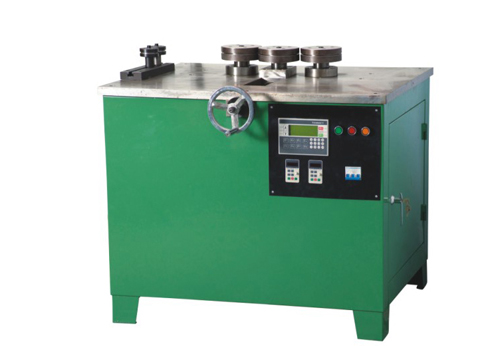

KXT E2000C is a new design rolling machine for SWG IR and OR. It has 3 driving rings. and the PLC size control system make the ring diameter tolerance very good. It can ring roll any size outer ring or inner ring by single run. Producing range is diamter 180-4000mm. Thickness 2mm, 3mm and 4mm. Ring width: 6-60mm.
| Specification as following: | |
| STYLE | KXT E2000C Ring Bending machine for SWG IR and OR |
| Bending Ring thickness | 2mm, 3mm, 4mm |
| Bending Ring width | 6mm--60mm |
| Maximum ring OD | 4000mm |
| Minimum ring ID | 180mm |
| Total power | 5kw |
| Spindle motor power | 0.75kw*3 |
| Power supply voltage | 380V/220V as request,3phases |
| linear speed | 0-200mm/s |
| PLC | xinjie |
| Frequency Converter | 2.2G |
| Machine measurement | 1050*900*1000mm |
| Machine net weight | 380kg |
