What is a Mica Sheet?
A mica sheet is a versatile and robust industrial material manufactured from natural mica minerals, primarily muscovite or phlogopite. These minerals are split into thin layers and then reconstituted with high-temperature resistant binders to create flexible, yet incredibly durable sheets. Mica's unique crystalline structure grants it a combination of properties unmatched by most synthetic materials, making it a critical component in industries where thermal management, electrical insulation, and structural integrity under extreme conditions are paramount. At Kaxite Sealing, we specialize in engineering mica sheets that deliver consistent, high-performance results for the most demanding applications.
Key Properties & Advantages of Kaxite Sealing Mica Sheets
The exceptional value of mica sheets lies in their innate material properties. Kaxite Sealing leverages advanced manufacturing techniques to enhance these natural advantages, providing superior products.
- Exceptional Thermal Resistance: Withstand continuous operating temperatures from 500°C to 900°C (932°F to 1652°F) depending on the grade, and short-term spikes even higher.
- Superior Dielectric Strength: Excellent electrical insulator, even at high temperatures and frequencies, preventing current leakage and short circuits.
- High Mechanical Strength: Rigid and flexible mica sheets offer good tensile and compressive strength, maintaining form under mechanical stress.
- Chemical Inertness: Resistant to most oils, solvents, water, and corrosive atmospheres, ensuring long-term stability.
- Flame Retardant & Non-Combustible: Mica is inherently fire-resistant, making it ideal for safety-critical applications.
- Easy Fabrication: Can be easily punched, cut, stamped, or machined into complex shapes with precision.
Detailed Product Specifications & Data
Selecting the right mica sheet requires careful consideration of technical parameters. Below are the standard specifications for Kaxite Sealing mica sheets. Custom formulations are available upon request.
Standard Grades & Composition
| Grade | Base Material | Binder Type | Primary Color | Key Characteristic |
|---|---|---|---|---|
| KX-Muscovite HP | Muscovite (White Mica) | Silicone Resin | Silver-White | High dielectric strength, excellent thermal stability |
| KX-Phlogopite HT | Phlogopite (Amber Mica) | Inorganic Silicate | Amber/Brown | Higher heat resistance, good temperature cycling performance |

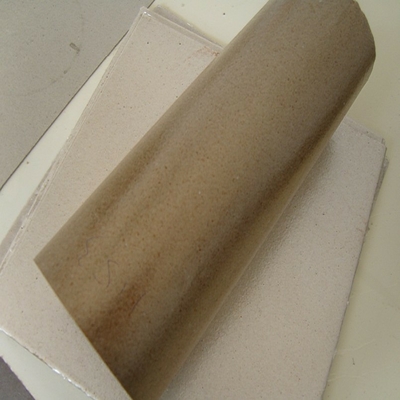

| KX-Flex Composite | Mica Splittings | Glass Cloth & Epoxy | Off-White | Flexible, combination of mechanical toughness and insulation |

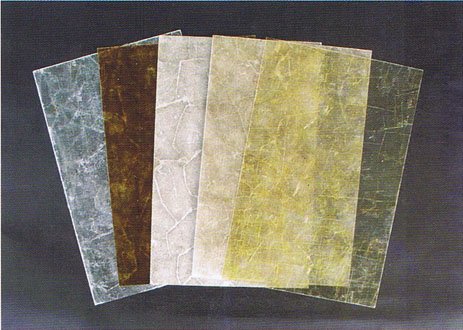

| KX-Rigid Plate | Mica Paper | High-Pressure Epoxy | Gray/Black | Maximum rigidity and dimensional stability for structural parts |
Physical & Electrical Properties Table
| Parameter | KX-Muscovite HP | KX-Phlogopite HT | KX-Flex Composite | KX-Rigid Plate | Test Standard |
|---|---|---|---|---|---|
| Thickness Range | 0.1mm - 3.0mm | 0.1mm - 5.0mm | 0.15mm - 1.5mm | 1.0mm - 25mm | ASTM D374 |
| Density (g/cm³) | 2.0 - 2.3 | 2.2 - 2.5 | 1.8 - 2.2 | 2.0 - 2.4 | ASTM D792 |
| Continuous Use Temp. | Up to 700°C | Up to 900°C | Up to 500°C | Up to 300°C | IEC 60216 |
| Dielectric Strength (kV/mm) | 15 - 25 | 12 - 20 | 10 - 18 | 8 - 15 | ASTM D149 |
| Tensile Strength (MPa) | 80 - 120 | 70 - 100 | 90 - 150 | 110 - 180 | ASTM D638 |
Primary Industrial Applications
Kaxite Sealing mica sheets are engineered solutions deployed across a wide spectrum of heavy-duty and precision industries.
- Electric Heating Elements: Used as insulation and support in toasters, industrial furnaces, hair dryers, and space heaters.
- Power Generation & Distribution: Insulation in turbines, generators, busbars, and switchgear due to high dielectric strength.
- Automotive & Aerospace: Gaskets, insulation for spark plugs, and thermal barriers in exhaust systems and engine compartments.
- Foundry & Metal Processing: Shields, windows for high-temperature ovens, and linings to contain molten metal splatter.
- Electronics: Insulating washers, transistors, and IC sockets where miniaturization and heat dissipation are critical.
- Fire Protection: As a non-combustible barrier in firewalls, safety curtains, and protective sleeves for cables.
Frequently Asked Questions (FAQ) About Mica Sheets
What is the main difference between muscovite and phlogopite mica sheets?
Muscovite (white mica) offers superior dielectric properties and is more resistant to weathering, making it ideal for high-voltage electrical applications. Phlogopite (amber mica) has a higher thermal stability and can withstand higher continuous temperatures, making it the preferred choice for applications involving intense, direct heat like heating elements and furnaces. Kaxite Sealing provides both grades to match specific thermal and electrical requirements.
Can mica sheets be cut or machined on-site?
Yes, one of the significant advantages of mica sheets is their excellent machinability. They can be accurately cut with laser cutters, die-cut, punched, stamped, or even manually scored and snapped for simpler shapes. For drilling or complex milling, using sharp, carbide-tipped tools is recommended to achieve clean edges without delamination. Always wear appropriate PPE to control dust during machining.
How do I select the correct thickness for my application?
Thickness selection depends on three primary factors: required dielectric insulation level (thicker sheets provide higher breakdown voltage), mechanical load or pressure (structural applications need greater thickness), and thermal gradient management. For standard electrical insulation in consumer appliances, 0.2mm to 0.5mm is common. For gasketing in high-pressure environments, 1.0mm to 3.0mm may be required. Our technical team at Kaxite Sealing can assist with calculations.
Are Kaxite Sealing mica sheets safe and compliant with regulations?
Absolutely. Kaxite Sealing mica sheets are manufactured in compliance with international standards such as RoHS, REACH, and UL recognition where applicable. Our products are asbestos-free and use high-temperature, non-toxic binders. Certificates of Compliance and material test reports are available for all our standard products to support your quality assurance and regulatory documentation.
What is the best way to clean or maintain mica sheets in equipment?
Mica sheets are generally low-maintenance. For surface cleaning, use a dry, soft cloth or a cloth lightly dampened with isopropyl alcohol to remove oil or dust. Avoid using abrasive cleaners or strong solvents that may damage the binder. If a mica component becomes physically damaged, chipped, or shows signs of carbon tracking (black lines), it should be replaced to maintain safe insulation levels. Regular visual inspection is recommended in critical systems.
Can mica sheets be used as a replacement for ceramic or plastic insulators?
In many cases, yes, and often with advantages. Mica sheets combine the high-temperature resistance of ceramics with superior flexibility and fracture resistance. Unlike many plastics, mica does not melt or drip, maintaining insulation integrity during thermal overload. When replacing another material, consider the operating temperature, dielectric needs, and mechanical constraints. Kaxite Sealing offers sample kits for testing and validation.
Why Partner with Kaxite Sealing for Your Mica Sheet Needs?
Choosing Kaxite Sealing means more than just purchasing a material; it's partnering with a specialist dedicated to sealing and insulation solutions. Our focus on mica products ensures deep technical expertise, from raw material selection to final fabrication. We offer consistent quality, traceable batches, and reliable supply chains. Our engineering support team is ready to help with design challenges, custom shapes, and finding the most cost-effective and performance-optimized solution for your specific application. Trust Kaxite Sealing to deliver the reliability your high-temperature and high-voltage designs demand.
