Copper Gaskets: The Essential Seal for Demanding Industrial Applications

For over two decades in the sealing industry, the critical role of a reliable gasket in ensuring system integrity cannot be overstated. Among the myriad of sealing solutions, copper gaskets stand out for their unique combination of properties, making them indispensable in high-temperature, high-pressure, and corrosive environments. Kaxite Sealing has been at the forefront of engineering and supplying premium-grade Copper Gaskets that meet the rigorous demands of modern industry. Crafted from high-purity alloys and manufactured with precision tooling, our gaskets provide a leak-proof seal that maintains performance under extreme conditions.

Unlike polymer-based seals, copper gaskets offer exceptional thermal conductivity, excellent malleability for superior conformance to flange surfaces, and inherent resistance to many corrosive agents. This makes them the seal of choice for applications where failure is not an option. From turbocharger systems and exhaust manifolds in automotive engineering to critical joints in chemical processing plants and power generation facilities, the right copper gasket ensures safety, efficiency, and longevity.

Why Choose Kaxite Sealing Copper Gaskets?

At Kaxite Sealing, we don't just supply gaskets; we provide sealing solutions backed by deep engineering expertise. Our commitment to quality begins with material selection and extends through every stage of production and quality assurance.

• Material Excellence: We use high-quality copper alloys (C11000, C10100, C10200) known for their superior softness, ductility, and consistent performance.
• Precision Manufacturing: Our state-of-the-art stamping, cutting, and machining processes ensure dimensional accuracy and flawless surface finishes, critical for an effective seal.

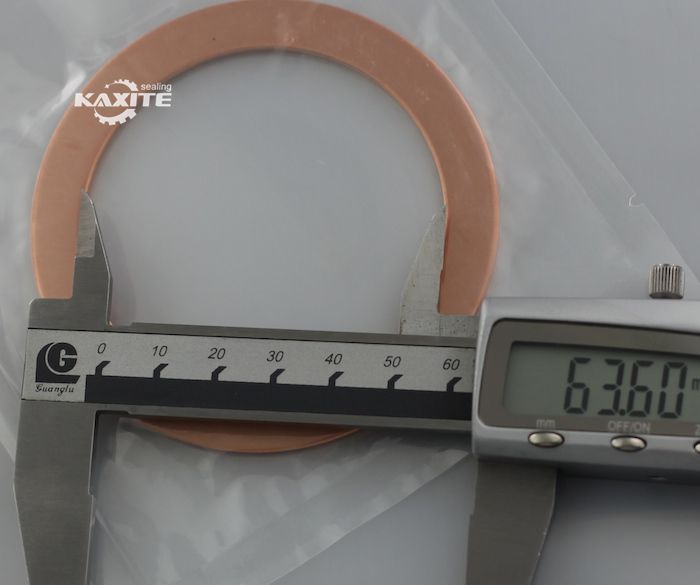

• Comprehensive Testing: Every batch undergoes rigorous testing for hardness, thickness uniformity, and surface defects to guarantee compliance with international standards.
• Technical Support: Our engineering team offers expert guidance on gasket selection, installation procedures, and application-specific challenges.
• Customization Capability: We specialize in producing custom copper gaskets tailored to unique specifications, including non-standard sizes, complex profiles, and specific alloy requirements.

Detailed Product Parameters & Specifications

Understanding the technical specifications of a copper gasket is crucial for proper selection and application success. Below are the key parameters that define Kaxite Sealing Copper Gaskets.

Standard Material Properties

Standard Product Range & Tolerances

Common Standard Profiles We Supply

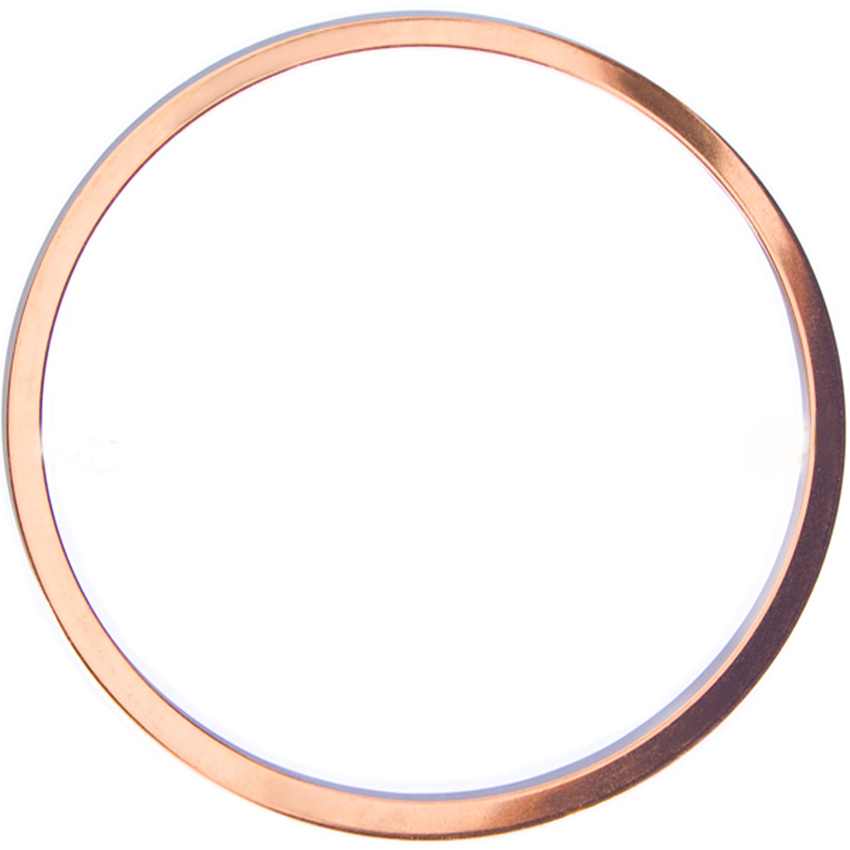

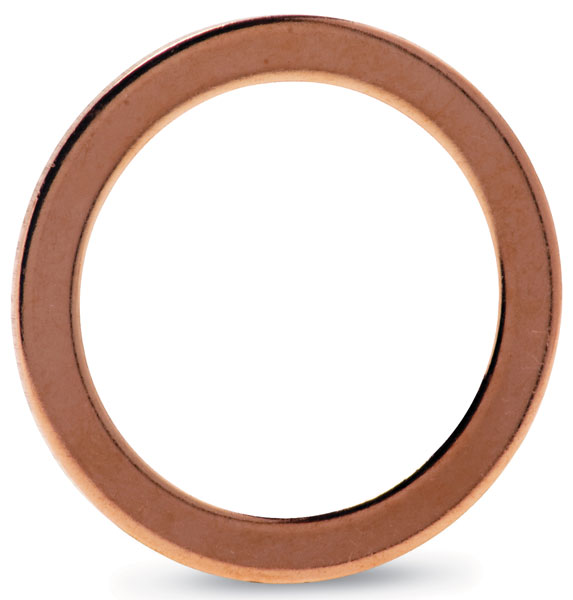

• Flat Ring Gaskets (ASME B16.21): The most common type for raised face and flat face flanges.
• Ring Type Joint (RTJ) Gaskets (ASME B16.20): For high-pressure applications using R-style grooves.
• Solid Oval/Octagonal Ring Gaskets: Used in API 6A and other oilfield standards for wellhead equipment.
• Lens Gaskets: For high-pressure vessel and reactor applications.
• Spiral Wound Gasket Fillers: Copper used as the winding material in combination with other metals.

Frequently Asked Questions (FAQ) About Copper Gaskets

Q: What are the primary advantages of using a copper gasket over a rubber or graphite gasket?

A: Copper gaskets offer distinct advantages in specific scenarios. Their key benefits include exceptional thermal conductivity, which helps dissipate heat from the joint area; high-temperature stability (up to 300°C continuous service); excellent malleability, allowing them to conform to minor imperfections on flange surfaces for a tight seal; and resistance to combustion gases, oils, and many solvents. They are ideal for static seals in exhaust systems, turbochargers, furnaces, and high-temperature plumbing where elastomers would degrade.

Q: How do I choose between an annealed (soft) and a hard temper copper gasket?

A: The choice depends on the application requirements. Annealed copper is very soft and ductile. It is the preferred choice for sealing uneven or slightly damaged flanges because it flows easily to fill surface irregularities, creating an excellent initial seal with lower bolt load. Hard temper copper has higher strength and rigidity. It is used when the gasket must maintain a specific shape under high internal pressure or vibration, or when it needs to be reused. For most high-temperature static seals, the annealed temper is recommended.

Q: Can Kaxite Sealing copper gaskets be used in oxidizing atmospheres at high temperatures?

A: While copper has good resistance to many corrosive environments, it will oxidize in air at elevated temperatures, forming a layer of copper oxide. For continuous service in oxidizing atmospheres above 150°C, we often recommend considering alternative materials like nickel alloys or specialized coatings. However, for many intermittent high-heat applications like automotive exhausts, the oxide layer that forms can actually be stable and non-flaking, providing adequate service life. Our technical team can advise based on your specific operating environment.

Q: What is the proper installation procedure for a flat copper ring gasket?

A: Correct installation is critical. First, ensure both flange sealing surfaces are clean, dry, and free of old gasket material, burrs, or deep scratches. Place the new, clean gasket centered on the flange. Use a crisscross (star) pattern to gradually tighten the bolts to about 30% of the final torque value. This ensures even compression. Then, follow the pattern again to reach the full specified bolt torque. For annealed copper, the gasket will deform plastically to seal. Avoid over-torquing, as this can cause copper to extrude or the flange to warp. Re-torquing after the first heat cycle is often recommended.

Q: Does Kaxite Sealing offer copper gaskets with coatings or platings?

A: Yes, we offer various surface treatments to enhance performance. Common options include silver plating, which improves corrosion resistance, reduces friction during tightening, and prevents galling or adhesion to stainless steel flanges. Nickel plating is another option for enhanced protection against specific corrosive media. We can also apply anti-seize compounds per customer request. These treatments are particularly beneficial for applications requiring disassembly and reassembly or for use with dissimilar metals.

Q: Are your copper gaskets compatible with all fluids and gases?

A: Copper exhibits excellent compatibility with a wide range of media including petroleum oils, fuels, hydraulic fluids, alcohols, refrigerants (like ammonia), and many neutral gases. However, it is not recommended for continuous service with strong oxidizing acids (like nitric acid), ammonia solutions in the presence of air, or acetylene. Always consult our chemical compatibility chart or provide the specific media details to our engineers for a definitive recommendation. Kaxite Sealing can also supply gaskets in other alloys like aluminum, stainless steel, or Monel for aggressive chemical services.

Q: How does Kaxite Sealing ensure quality and traceability?

A> Quality is embedded in our process. We source raw materials from certified mills, with Mill Test Certificates (MTCs) available for traceability. Our production is controlled using statistical process control (SPC) methods. Final inspection includes dimensional checks with calibrated instruments, visual inspection for defects, and batch testing for mechanical properties. For critical applications, we can provide full material certification (3.1 or 3.2 per EN 10204) and implement serialization for individual part traceability throughout its lifecycle.
