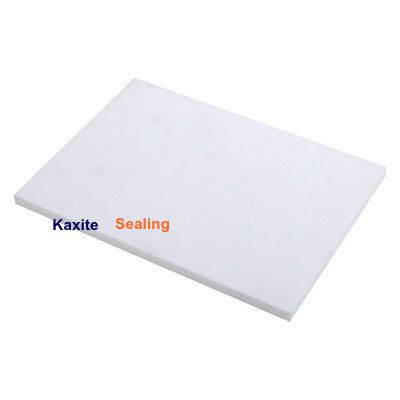

PTFE Sheet, also known as Teflon® sheet or polytetrafluoroethylene sheet, is a versatile high-performance fluoropolymer material renowned for its exceptional chemical resistance, wide operating temperature range, and low coefficient of friction. At Kaxite Sealing, we specialize in manufacturing premium-grade PTFE sheets designed to meet the rigorous demands of various industrial, mechanical, and chemical processing applications. Our commitment to precision engineering and material purity ensures that every sheet delivers consistent, reliable performance in the most challenging environments.
**Key Properties and Advantages of Kaxite Sealing PTFE Sheets**
The superior performance of PTFE stems from its unique molecular structure. Here are the core properties that make it an indispensable engineering material:
* **Unmatched Chemical Resistance:** PTFE is virtually inert, resisting attack by almost all industrial chemicals, solvents, and acids, including strong oxidizers like aqua regia. This makes it ideal for gaskets, seals, and linings in aggressive chemical environments.
* **Exceptional Temperature Resistance:** Kaxite Sealing PTFE sheets maintain their structural integrity and properties across a broad temperature spectrum, typically from -200°C (-328°F) to +260°C (+500°F) for continuous use, with short-term peaks even higher.
* **Excellent Electrical Insulation:** It possesses superb dielectric properties, making it a top choice for insulating components in electrical and electronic applications.
* **Low Coefficient of Friction:** PTFE has one of the lowest coefficients of friction of any solid material, providing inherent lubricity and anti-stick characteristics. This is crucial for applications involving sliding parts, bearing surfaces, and release layers.
* **Non-Stick and Non-Wetting:** Its surface is highly hydrophobic and oleophobic, meaning it repels both water and oils. This prevents adhesion of sticky substances and simplifies cleaning.
* **Weather and UV Resistance:** PTFE is highly resistant to weathering and ultraviolet radiation, ensuring long-term performance in outdoor applications.
* **Compliance and Safety:** Our PTFE sheets are manufactured to be compliant with relevant industry standards for food contact (FDA), potable water (NSF/ANSI 61), and other regulatory requirements where applicable.
**In-Depth Product Parameters: Kaxite Sealing PTFE Sheet Specifications**
Our PTFE sheets are available in various grades and forms to suit specific application needs. The following tables detail our standard product specifications.
**Table 1: Standard PTFE Sheet Grades & Properties**
| Grade | Description | Key Characteristics | Primary Applications |
| :--- | :--- | :--- | :--- |
| **Virgin PTFE** | Pure, unfilled PTFE resin. | Highest purity, excellent electrical properties, superior chemical resistance. | Chemical linings, high-purity labware, electrical insulation, food & pharmaceutical processing. |
| **Glass-Filled PTFE** | PTFE compounded with glass fiber. | Improved compressive strength, reduced creep (cold flow), enhanced wear resistance. | Gaskets, seals, bearings, thrust washers, compressor rings. |
| **Carbon-Filled PTFE** | PTFE compounded with carbon/graphite. | Excellent wear resistance, high thermal conductivity, good PV (Pressure-Velocity) limits. | Piston rings, seals, bearings for dry-running applications, anti-static components. |
| **Bronze-Filled PTFE** | PTFE compounded with bronze powder. | Superior wear resistance, high load-bearing capacity, excellent thermal conductivity. | Heavy-duty bearings, bushings, wear pads, slide plates. |
| **Stainless Steel Filled PTFE** | PTFE compounded with stainless steel powder. | High mechanical strength, excellent wear and deformation resistance. | Seals and bearings in corrosive environments requiring extra strength. |
| **FDA-Compliant PTFE** | Virgin or specially formulated PTFE. | Meets FDA CFR 21.177.1550 for food contact. | Seals, gaskets, and components in food processing, packaging, and beverage equipment. |
**Table 2: Physical & Mechanical Properties (Typical Values for Virgin PTFE)**
| Property | Test Method | Value / Range |
| :--- | :--- | :--- |
| **Density** | ASTM D792 | 2.14 - 2.20 g/cm³ |
| **Tensile Strength** | ASTM D638 | 20 - 35 MPa (2900 - 5000 psi) |
| **Elongation at Break** | ASTM D638 | 200 - 400 % |
| **Compressive Strength** | ASTM D695 | 12 MPa (1700 psi) |
| **Flexural Modulus** | ASTM D790 | 500 MPa (72,500 psi) |
| **Coefficient of Friction (Static)** | ASTM D1894 | 0.04 - 0.10 |
| **Continuous Service Temperature** | — | -200°C to +260°C (-328°F to +500°F) |
| **Thermal Conductivity** | ASTM C177 | 0.25 W/m·K |
| **Dielectric Strength** | ASTM D149 | 19 kV/mm (480 V/mil) |
| **Water Absorption** | ASTM D570 | < 0.01 % |
**Table 3: Standard Available Sizes & Forms**
| Dimension | Available Range |
| :--- | :--- |
| **Sheet Thickness** | 0.5mm (0.020") up to 50mm (2.0") and beyond. Custom thicknesses available. |
| **Sheet Size (Width x Length)** | Standard sheets: 1000mm x 1000mm (39" x 39"), 1200mm x 1200mm (47" x 47"), 1500mm x 1500mm (59" x 59"). Rolls available for thinner gauges. Custom sizes can be cut to order. |
| **Color** | Virgin: White. Filled grades: Typically black, brown, or off-white depending on filler. Custom colors upon request. |

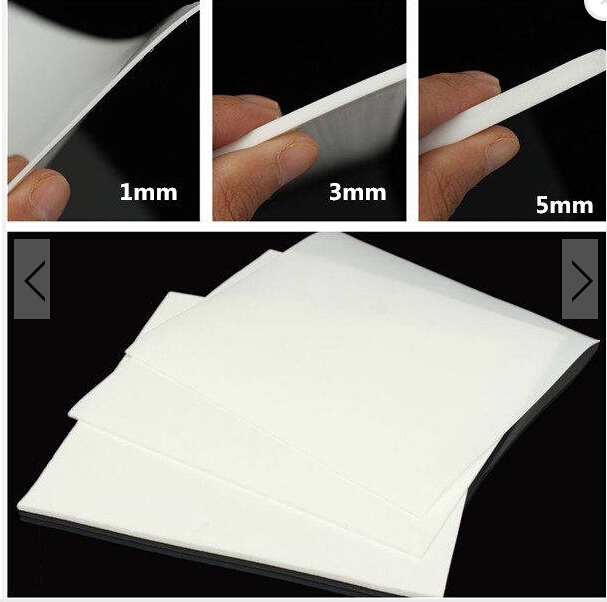

| **Surface Finish** | Standard (as-molded/sintered), skived (smooth film-like), or machined to specific surface finishes. |
**Frequently Asked Questions (FAQ) About PTFE Sheets**
**Q: What is the main difference between PTFE sheet and other plastic sheets like polyethylene or PVC?**
A: The primary differences are in temperature capability, chemical resistance, and friction. PTFE sheet can operate continuously at temperatures up to 260°C, whereas materials like HDPE or PVC have much lower maximum service temperatures (typically below 80-100°C). Chemically, PTFE is far more inert, resisting strong acids, bases, and solvents that would severely damage or dissolve polyethylene or PVC. Furthermore, PTFE's extremely low friction and non-stick properties are unique and not matched by these other thermoplastics.
**Q: Can Kaxite Sealing PTFE sheets be easily machined or fabricated?**
A: Yes, PTFE is an excellent machining material. It can be easily cut, drilled, turned, milled, and stamped using standard workshop tools designed for plastics. Its lack of melting point (it transitions to a gel-like state) means it machines cleanly without melting or gumming up tools. For complex parts, Kaxite Sealing also offers custom fabrication and CNC machining services from our sheet stock to meet precise dimensional tolerances.
**Q: How do I choose the right PTFE grade (virgin vs. filled) for my application?**
A: The choice depends on your primary performance requirement. Use virgin PTFE for maximum chemical resistance, highest purity, or best electrical properties. If your application involves significant mechanical load, pressure, or wear (e.g., a bearing or heavy-duty gasket), a filled grade is essential. Glass fiber improves creep resistance and stiffness. Carbon/graphite enhances wear and thermal conductivity. Bronze offers the highest load capacity and wear resistance. Our technical team at Kaxite Sealing can help you select the optimal grade.
**Q: Is PTFE safe for use in food processing or medical applications?**
A: Pure, virgin PTFE is biologically inert and, when manufactured to the proper standards, is safe for food contact. Kaxite Sealing offers specific FDA-compliant PTFE sheet grades that conform to U.S. FDA regulations (CFR 21.177.1550). For medical applications, biocompatibility testing per ISO 10993 may be required depending on the nature of contact. It is crucial to specify your regulatory needs when ordering.
**Q: What are the limitations or weaknesses of PTFE material?**
A: While outstanding in many areas, PTFE has a few limitations to consider. It has a relatively low mechanical strength and stiffness compared to metals or some engineering plastics; it can exhibit "cold flow" or creep under sustained heavy load (mitigated by using filled grades). It is also susceptible to permeation by某些 gases and has poor radiation resistance. Additionally, it cannot be melt-processed like conventional plastics, which limits some fabrication methods.
**Q: How should PTFE sheets be stored and handled?**
A: Store PTFE sheets in a cool, dry, and dark environment away from direct sunlight and heat sources. They should be kept flat to prevent warping or bending. While chemically resistant, it is good practice to keep them clean from surface contaminants before fabrication. Handling is straightforward, and no special PPE is needed beyond standard workshop safety gear for machining.
**Q: Can PTFE sheets be bonded or welded together?**
A: Bonding PTFE is challenging due to its non-stick nature. Standard adhesives do not work. Successful bonding requires specialized processes such as surface activation using sodium etching or plasma treatment, after which specific epoxies can be used. Thermal welding (hot gas, hot plate) is not effective for PTFE due to its high melt viscosity. Mechanical fastening (using bolts, rivets, or press-fits) or designing interlocking components is often the preferred joining method.
**Q: What industries commonly use Kaxite Sealing PTFE sheets?**
A: Our PTFE sheets serve a vast array of industries including: Chemical Processing (for gaskets, seals, valve seats, linings), Pharmaceutical & Food (for compliant seals and components), Aerospace & Automotive (for bushings, seals, insulators), Electrical & Semiconductor (for high-purity insulators, wafer carriers), Industrial Machinery (for wear plates, slide bearings, thrust washers), and Oil & Gas (for rings and seals in demanding downhole and refining environments).
