High-Quality PTFE Tube for Industrial Applications from Leading Manufacturers

PTFE Tube, also known as Polytetrafluoroethylene tubing, is a cornerstone material in demanding fluid transfer and insulation applications across countless industries. Its unique combination of chemical inertness, thermal stability, and low friction makes it an indispensable solution where other materials fail. At Kaxite Sealing, we engineer our PTFE tubing to the highest standards, ensuring reliability, performance, and longevity in your most critical systems.

What is PTFE Tube?

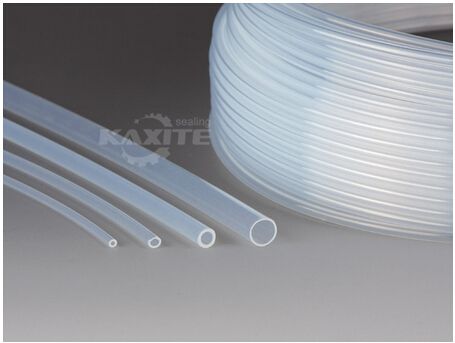

PTFE Tube is a flexible, semi-translucent hose manufactured from Polytetrafluoroethylene resin. This fluoropolymer is renowned for its exceptional resistance to aggressive chemicals, extreme temperatures, and electrical currents. The tubing is extruded to create a smooth, non-stick bore that prevents material buildup and ensures consistent flow. Its versatility allows it to function as protective sleeving, fluid conveyance lines, or insulation for wires and components. From laboratory analyzers to semiconductor manufacturing and automotive fuel systems, PTFE tubing provides a dependable barrier and conduit in environments that would degrade lesser materials.

Key Features and Advantages of Kaxite Sealing PTFE Tubing

Choosing Kaxite Sealing PTFE tubing means investing in a product designed for excellence. Our commitment to quality control and advanced manufacturing translates into tangible benefits for your operations.

• Unmatched Chemical Resistance: Inert to nearly all industrial chemicals, solvents, and acids, including concentrated sulfuric and nitric acids.
• Exceptional Temperature Range: Maintains flexibility and integrity from -200°C (-328°F) up to +260°C (+500°F) continuously.
• Ultra-Low Friction Surface: The lowest coefficient of friction of any solid material, preventing clogging and ensuring easy cleaning.
• Excellent Dielectric Properties: A superb electrical insulator with a high dielectric strength, ideal for high-voltage applications.
• Non-Stick & Non-Wetting: Repels water, oils, and sticky substances, guaranteeing purity in fluid transfer.
• High Purity & FDA Compliance: Selected grades are compliant with FDA regulations for food and pharmaceutical contact.
• Weather & UV Resistance: Highly resistant to weathering and ultraviolet light, suitable for outdoor use.
• Long Service Life: Exceptional durability and resistance to aging reduce maintenance costs and downtime.

Technical Specifications & Product Parameters

Kaxite Sealing offers a comprehensive range of PTFE tubing to meet precise application requirements. Below are our standard specifications. Custom sizes and configurations are available upon request.

Available Sizes & Packaging

Our standard PTFE tubing is available in continuous lengths or cut-to-size pieces. We stock a wide array of common sizes for immediate delivery.

• Common ID/OD Combinations (mm): 1/2, 2/4, 4/6, 6/8, 8/10, 10/12, 12/14, 14/16, 16/18.
• Common ID/OD Combinations (inches): 1/16" / 1/8", 1/8" / 1/4", 1/4" / 3/8", 3/8" / 1/2", 1/2" / 5/8".
• Standard Lengths: 1-meter cuts, 10-meter coils, 25-meter coils, and 100-meter reels.
• Packaging: Securely coiled on spools or reels, wrapped in protective plastic, and shipped in sturdy cardboard boxes.

Industries and Applications

Kaxite Sealing PTFE tubing serves as a critical component in a diverse range of sectors.

• Chemical Processing: Transfer lines for acids, alkalis, solvents, and aggressive chemicals. Probe sleeves for sensors.
• Pharmaceutical & Biotech: High-purity fluid transfer, peristaltic pump tubing, vent lines, and connections in bioreactors.
Food & Beverage: Sanitary fluid lines for flavors, oils, and additives. Insulation for heating elements.
• Semiconductor Manufacturing: Ultra-clean lines for high-purity gases, chemicals, and deionized water in wafer fabrication.
• Automotive & Aerospace: Fuel lines, hydraulic lines, air/oil sampling lines, and wire insulation in harsh engine compartments.
• Electrical & Electronics: Insulating sleeving for wires, cables, and components in high-voltage or high-temperature environments.
• Laboratory & Analytical: Tubing for chromatography, autosamplers, fluid handling systems, and corrosion-resistant connections.

Frequently Asked Questions (FAQ)

Q: What is the maximum pressure rating for PTFE tubing?
A: The pressure rating depends heavily on the inner diameter, wall thickness, temperature, and fitting type. As a flexible material, PTFE tubing is generally not designed for high-pressure hydraulic applications like steel. For small diameters (e.g., 1/8" ID) with standard walls, burst pressures can range from 200 to 500 PSI. It is crucial to consult Kaxite Sealing's pressure/temperature charts or contact our engineering team for your specific application to ensure safe operation. Always use proper support and clamps to prevent kinking, which significantly reduces pressure capacity.

Q: Can PTFE tubing be bent or shaped?
A: Yes, PTFE tubing is quite flexible and can be bent to a minimum bend radius. The minimum safe bend radius is typically 4 to 5 times the outer diameter of the tubing. For example, tubing with a 10mm OD should not be bent tighter than a 40-50mm radius. Bending it tighter can cause kinking, which restricts flow and creates a weak point. For permanent complex shapes, heat forming can be performed, but this requires specialized equipment and expertise to avoid degradation of the material.

Q: How do I connect PTFE tubing to fittings or other components?
A: PTFE tubing requires specific connection methods due to its flexibility and low friction. The most common and secure methods are:
1. Compression Fittings: Utilize ferrules (often made of PEEK or stainless steel) that compress onto the tubing when tightened, creating a strong seal.
2. Barbed Fittings: The tubing is pushed over a barbed stem and secured with a clamp (e.g., hose clamp or cable tie). This is suitable for lower-pressure applications.
3. Flared or Beaded Ends: The tube end can be flared or have a bead formed onto it to fit into standard SAE or JIC flare fittings.
It is essential to use fittings designed for PTFE or soft plastic tubing to prevent cutting or slippage.

Q: Is Kaxite Sealing PTFE tubing suitable for outdoor use?
A: Absolutely. PTFE has excellent resistance to weathering, UV radiation, and ozone. It will not become brittle or degrade when exposed to sunlight and the elements for extended periods. This makes Kaxite Sealing PTFE tubing an excellent choice for outdoor instrumentation, sampling lines exposed to weather, and any application requiring long-term environmental durability.

Q: What is the difference between PTFE, FEP, and PFA tubing?
A: All are fluoropolymers with similar chemical resistance, but key differences exist:
- PTFE: Highest temperature resistance (up to 260°C), opaque/semi-translucent, cannot be melt-processed (requires sintering). It is the most common and cost-effective for general high-performance use.
- FEP: Clear/transparent, lower temperature rating (up to 200°C), and can be heat-sealed or welded. It is often used where visual flow monitoring is needed.
- PFA: Combines the clarity of FEP with a higher temperature resistance closer to PTFE (up to 260°C). It is exceptionally pure and used in the most critical semiconductor and pharmaceutical applications, but it is more expensive.
Kaxite Sealing can advise on the optimal material for your specific needs.

Q: How do I clean PTFE tubing?
A: The non-stick nature of PTFE makes it very easy to clean. For most contaminants, flushing with an appropriate solvent (compatible with PTFE) or detergent solution is sufficient. For more stubborn deposits, the tubing can be soaked. In extreme cases, due to its high-temperature resistance, it can be thermally cleaned (burned out) if the application allows, though this may affect dimensional stability. Always ensure the cleaning agent is chemically compatible with PTFE.

Q: Can you manufacture custom PTFE tubing?
A: Yes, at Kaxite Sealing, custom manufacturing is a core service. We can produce tubing with non-standard inner/outer diameters, specific wall thicknesses, custom colors (for coding), and even co-extruded or multi-lumen designs. We also offer value-added services like cutting, flaring, beading, printing, and assembly with fittings. Contact our sales team with your detailed requirements for a quotation.

Q: Does PTFE tubing meet FDA requirements for food contact?
A> Yes, specific grades of PTFE resin comply with FDA regulation 21 CFR 177.1550 for repeated food contact. Kaxite Sealing offers FDA-compliant PTFE tubing that is suitable for use in food processing, beverage dispensing, and pharmaceutical applications where material purity is mandated. Certificates of Compliance are available upon request.
