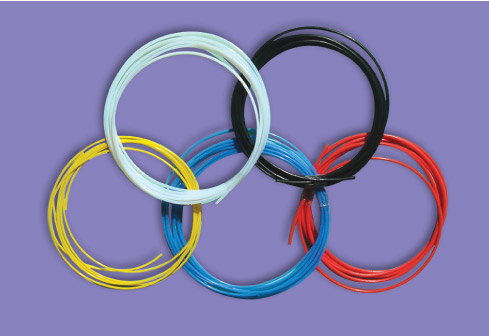

PTFE Extruded Tubing

PTFE Extruded Tubing

Kaxite Sealing offers premium PTFE extruded tubing, delivering unmatched durability and chemical resistance for industrial and medical applications. Its smooth, non-stick surface ensures reliable fluid transfer, reducing downtime and enhancing safety. Ideal for engineers and manufacturers seeking high-performance solutions that boost efficiency and peace of mind. Experience superior quality that outperforms competitors—choose Kaxite Sealing for excellence in every project.
[ Features ]
PTFE extruded tubing is manufactured by high pressure PTFE dispense resin mixed with additive, it is extruded and sintered. According to different demands, the tubing could be opaque or translucent.
PTFE is well known for its chemical resistance, not aging, non stick, self-lubrication, insulation and wide working temperature range from -180 to +260. Because of these excellent properties, PTFE has a wide application in fields of chemical, mechanical, electronics, medical and aviation, etc.
[ Main properties ]

Properties

Unit

Result

Apparent density
g/cm3
2.10-2.20

Tensile strength (min)

MPa

20

Ultimate elongation (min)

%

200
Residual Lubricant Content (max)
%
0.5
Dialectric Strength (min)
KV/mm
10

PTFE Extruded Tubing
[ Applications ]
Used as wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc.
[ Specifications ]
ODXID(mm)
Tolerance (mm)
ODXID(mm)
Tolerance (mm)
Φ0.8X0.4
0.08
Φ12X10
0.2
Φ1X0.5
0.08
Φ14X12
0.2
Φ2X1
0.08
Φ16X14
0.2
Φ4X2
0.1
Φ18X16
0.3
Φ6X4
0.1
Φ20X18
0.3
Φ8X6
0.1
Φ22X20
0.3
Φ10X8
0.1
Φ24X21
0.3
Hot Tags: PTFE extruded tubing suppliers, high-quality PTFE tubing manufacturers, custom PTFE tubing wholesale
